More Solar. More Control. Meet the LSH-6 Hybrid Battery Inverter.

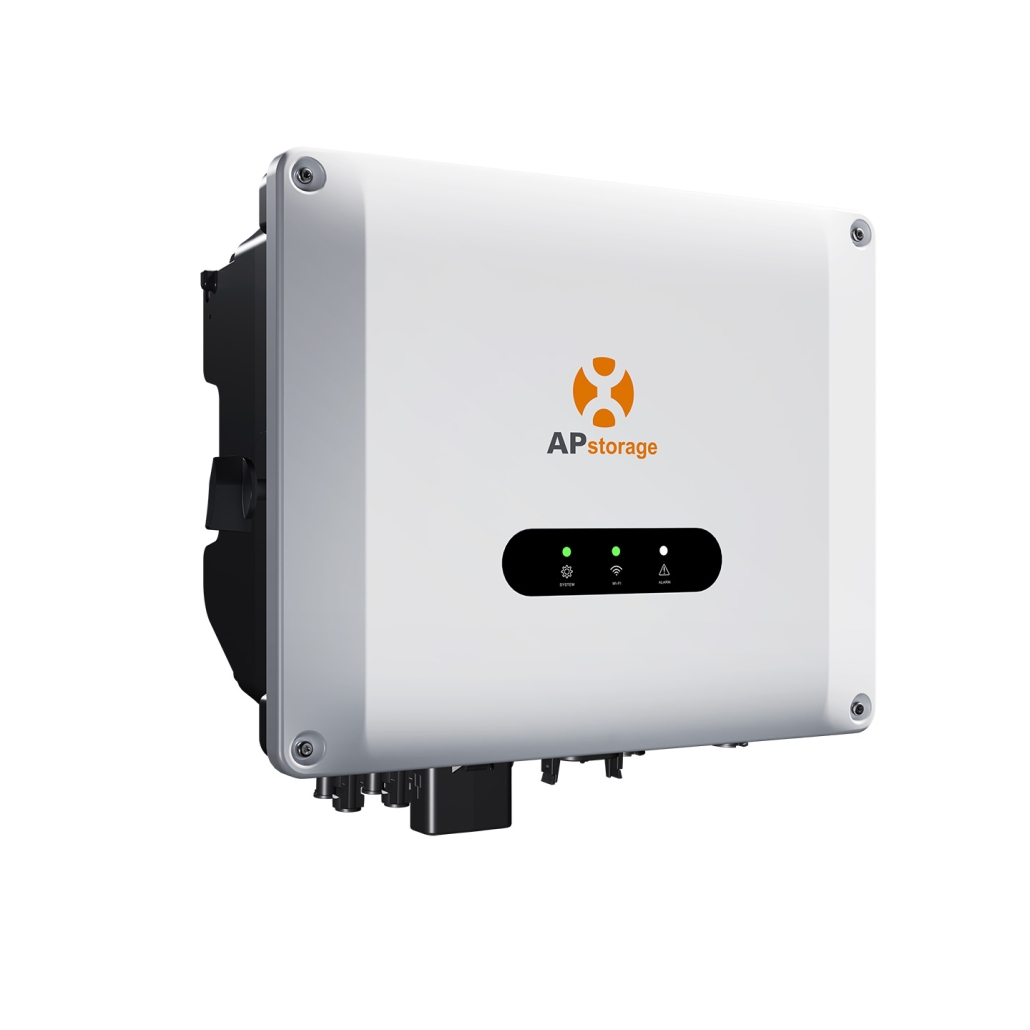

The APstorage LSH-6 is a compact, single-phase, low-voltage hybrid battery inverter designed to bring solar generation, battery storage, grid power and backup together in one intelligent residential energy system.

With 6,000 VA of continuous AC output, up to 9,000 VA of peak backup power and UPS-level switching in 4 milliseconds or less, the LSH-6 helps homeowners maximize solar self-consumption while maintaining dependable backup power. Its 48 V battery architecture, direct PV inputs and generator compatibility provide greater flexibility for new residential solar and storage installations.

1 2 3 4 5 6 7 8

Product Documentation:

Explore technical specifications, installation information and additional product resources for the APstorage LSH-6.

download documentation

Key Features

✔ 6,000 VA of continuous on-grid and backup output

✔ Up to 9,000 VA of peak backup output for 10 seconds

✔ Supports up to 12,000 W of connected PV capacity

✔ Supports 2x DC oversizing

✔ Two independent MPPTs for greater solar production flexibility

✔ 48 V low-voltage battery design

✔ Up to 125 A continuous battery charging and discharging

✔ UPS-level backup switching in 4 milliseconds or less

✔ Up to 97.6% maximum efficiency

✔ On-grid and off-grid operation

✔ Compatible with mainstream low-voltage batteries

✔ Generator connection and dry-contact control

✔ Dedicated smart port for generator or PV inverter integration

✔ Zero-export capability

✔ IP65-rated enclosure

✔ Fanless natural cooling with operating noise below 30 dB

✔ Real-time monitoring through the EMA App, EMA Web and EMA Manager

✔ Wi-Fi, Bluetooth, RS485 and CAN communications

✔ Local Modbus and Open API support

✔ 10-year warranty

APstorage industrial storage unit mounted on a stand, gray enclosure with a black control panel and green indicator lights on the front panel.

Solar, Storage and Backup – Intelligently Connected

The LSH-6 combines a solar inverter and battery inverter in one streamlined hybrid solution. Direct PV inputs, low-voltage battery compatibility and flexible grid integration allow solar energy to power the home, charge the battery or support backup loads according to household priorities.

Generator compatibility provides an additional source of backup power, while the integrated smart port offers greater flexibility for connecting a generator or an additional PV inverter.

Smart Energy Management

More Control Over How Home Energy Is Used

Multiple operating modes allow homeowners to manage energy around their individual needs, electricity rates and backup priorities.

AI MODE

Intelligently optimizes battery charging and discharging based on household energy requirements.

SELF-CONSUMPTION

Prioritizes solar energy for household use and stores excess production for use when solar generation is lower.

TIME-BASED CONTROL

Charges and discharges the battery according to electricity rates and preferred operating schedules.

BACKUP POWER

Keeps essential household loads powered during a grid outage with UPS-level switching in 4 milliseconds or less.
